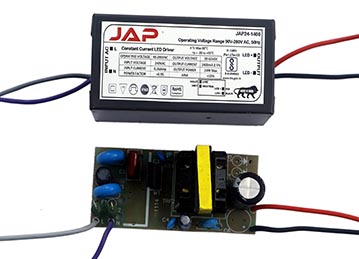

Outdoor18-24 W

With premium Plastic casing and a very robust circuit inside, we have packed the most sophisticated design inside a very small form factor. It has an on board high and low voltage cut, as well as thermal protection, making it a very reliable led driver.

Contact Now

Feature & Specifications:

  • Surge test: 5KV, in common mode
  • Efficiency: >85% at complete input range

Ratings Available (Customizable)

  • 16-18W 30VDC 500mA
  • 19-21W 30VDC 600mA
  • 22-25W 30VDC 700mA

Common Features

  • Wide input range: 100 to 300VAC
  • High Voltage: Cutoff @ 320VAC & Reconnect @ 305VAC
  • Low Voltage: Cutoff @ 90VAC & Reconnect @ 110VAC
  • Maximum Voltage Sustainable: 440VAC
  • PF: greater than 0.95
  • THD: Less than 10%
  • Other Protections: OVP, Short Circuit Protection, Thermal, IP20/IP65
  • Current accuracy: ±3%
  • High-pot test: 3.5KV @Input & Output (18W-300W)
  • 1.5KV @Power & Ground (45W-300W)
