Outdoor130W-150W

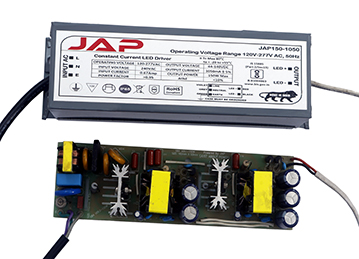

Dual output drivers are out there for a very long time now, but mostly their sizes are bulky, making them impractical for today’ applications, so we come up with a refreshing new size, that fits perfectly in smallest of housings. Our 150W driver delivers on both, electrical & thermal parameters.

Contact Now

Feature & Specifications:

  • 6KV, in common & Differential mode
  • Efficiency: >88% at complete input range

Ratings Available (Customizable)

  • 130-150W 168-196VDC 700mA
  • 130-150W 114-130VDC 1050mA
  • 130-150W 78-90VDC 1500mA
  • 130-150W 60-66VDC 2000mA

Common Features

  • Wide input range: 100 to 300VAC
  • High Voltage: Cutoff @ 320VAC & Reconnect @ 305VAC
  • Low Voltage: Cutoff @ 90VAC & Reconnect @ 110VAC
  • Maximum Voltage Sustainable: 440VAC
  • PF: greater than 0.95
  • THD: Less than 10%
  • Other Protections: OVP, Short Circuit Protection, Thermal, IP20/IP65
  • Current accuracy: ±3%
  • High-pot test: 3.5KV @Input & Output (18W-300W)
  • 1.5KV @Power & Ground (45W-300W)
