LEDs Product Details

AC/DC LED Drivers

LED Drivers for Indoor Lights:

Driver for Floodlighting/Streetlight/Baylight

Model No: 15/24/35/48/60/80/120/160/200W

Feature & Specifications:

440V Sustainable,
5KV Surge,
Wide Voltage Range (90-340V) - Consistent performance parameter over wide voltage range
Low THD ( <10%)
90% Efficiency,
Open Frame or Potted
With Voltage High Cut Off
Optional Thermal Protection
Optional Low Voltage Cutoff -
With Base Plate designed as per the PDC Casting Models of Floodlight/Streetlight/Baylight

Outdoor 15W / 12-15W

Model No: JAP1650

Feature & Specifications:

Open Frame Size: 63*41*28

Outdoor 24W / 18-24W

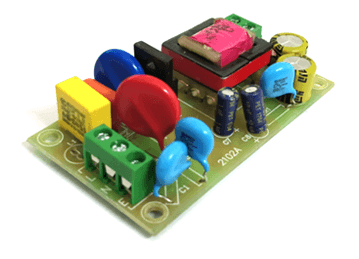

Model No: JAP2102

Feature & Specifications:

Size (Open Frame) 71*41*28

Outdoor 35W / 30-35W

Model No: JAP1859

Feature & Specifications:

Size (Open Frame) 75*41*30

Outdoor 50W (Round) / 40-50W

Model No: JAP2164

Feature & Specifications:

Size (Open Frame) Dia 71 * 30

Outdoor 45W / 40-45W

Model No: JAP1764

Feature & Specifications:

Size (Open Frame): 71*51*30

Outdoor 60W / 50-60W

Model No: JAP1765

Feature & Specifications:

Size (Open Frame) 91*53*30

Outdoor 60W / 50-60W

Model No: JAP2203

Feature & Specifications:

Size (Open Frame) 108*39*35

Outdoor 60W (with low cut and EMI)/50-60W

Model No: JAP2303

Feature & Specifications:

Size (Open Frame) 115*39*35

Outdoor 80W / 70-80W

Model No: JAP 1761

Feature & Specifications:

Size (Open Frame) 100*65*34

Outdoor 120W (Rectangular)/90-120W

Model No: JAP1559

Feature & Specifications:

Size (Open Frame) 150*87*40

Outdoor 120W (Linear)/100-120W

Model No: JAP3165

Feature & Specifications:

Size (Open Frame) 182*54*36

Surge Protection Devices

SPD 10KV/10kA

Model No: JAP1645

SPD 20KV/10kA

Model No: JAP1045

Feature & Specifications:

Parallel and Series Connected SPD Options
IP66 Water-proof and Dust-proof
Maximum Discharge Current (Imax) 10kA, 8/20µs.
High line-to-earth/ ground resistance

Driver

Model No:

Feature & Specifications:

No poor THD

New Products - Under Development Stage

Outdoor 80W/80-90W

Model No: JAP1065

Outdoor 80W/80-90W

Model No: JAP1061

Size (Open Frame) 101*75*44

Outdoor 120W (Horizontal) / 100-120W

Model No: JAP 3155

Size (Open Frame) 118*81*40

Outdoor 150W/140-160W

Model No: JAP 1755/3161 / (2*1761)

Size (Open Frame) 129*100*40

Outdoor 200W/180-200W

Model No: JAP4165

Size (Potted) 200*105*40

Feature & Specifications:
